Features

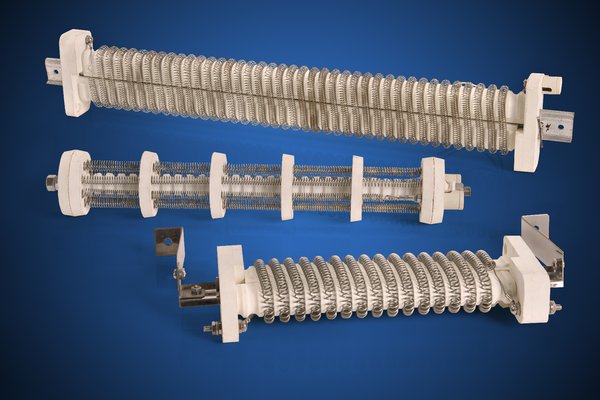

Volton offers custom-designed brake resistors tailored to your specific needs. We also provide full-unit repair services, regardless of the brand or original manufacturer. Our resistors are ideal for use in load banks designed to test generators, motors, battery systems, and uninterruptible power supplies (UPS).
These resistors play a critical role in dissipating energy generated by a motor during deceleration, whether it's an AC or DC motor. By safely absorbing this energy, brake resistors protect both the motor and power circuits, while reducing energy spikes that can occur during startups. This energy dissipation enhances operational safety and extends the lifespan of your equipment.
Technical Specifications
Brake resistors are built to withstand high temperatures and deliver robust performance, making them ideal for demanding industrial applications.
-
Lengths range from 12.25" to 24.25"
-
Available with or without mounting brackets for easier installation
-
CSA certified (Canadian Standards Association)
Standard Model Specifications
| Overall Length | Minimal Resistance | Maximum Power (Continuous Basis & No Ventilation) | Maximum Power (With a cylindrical proportion 1:6 & No Ventilation) |
|---|---|---|---|
| 12.25" | 7.5 | 375 W | 2200 W |
| 15.25" | 10.0 | 500 W | 3000 W |
| 18.25" | 12.5 | 625 W | 3750 W |
| 21.25" | 15.0 | 750 W | 4500 W |
Applications
Brake resistors are widely used in industrial systems, machine tools, and other automated setups, including:
-
Load banks
-
Overhead cranes
-
Elevators
-
Braking for AC and DC motors
